PayEye & Dockingstation – Edition LUKB


For secure and efficient capture of QR-bills

Connection

USB-C
WiFi
IEEE 802.11b/g/n nets
Bluetooth
from 2.1

Scanning

Swiss QR Code
Orange inpayment slip with code line

Operating System

macOS 10.14 onward
Windows 10

Battery

Rechargeable
Sleeping mode

PayEye & Dockingstation – Edition LUKB

For secure and efficient capture of QR-bills

Advantages of PayEye

  • Edition LUKB is a limited edition of PayEye in a set with docking station and USB wall charger

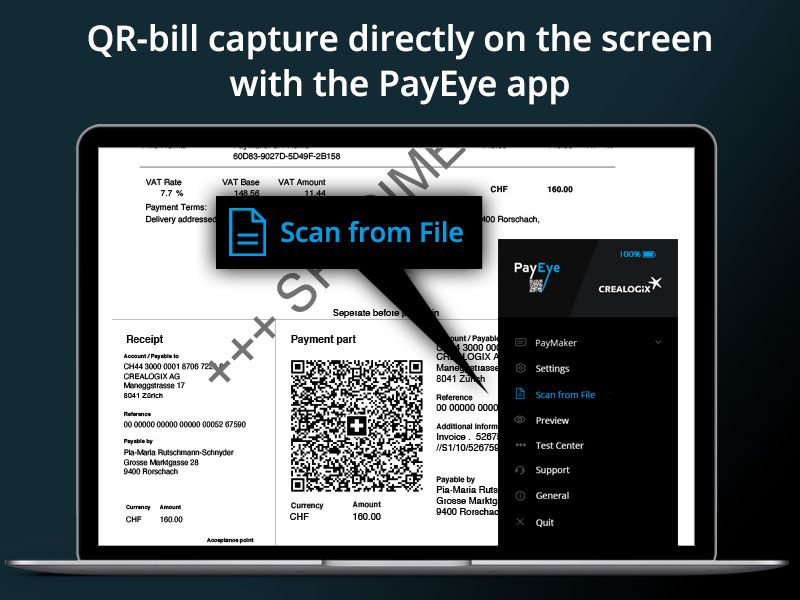

  • Swiss QR Code - capturing data from the QR-bill on paper or direct from a file
  • 1 click to enter, check and transmit all payment-relevant data in Swiss QR Code

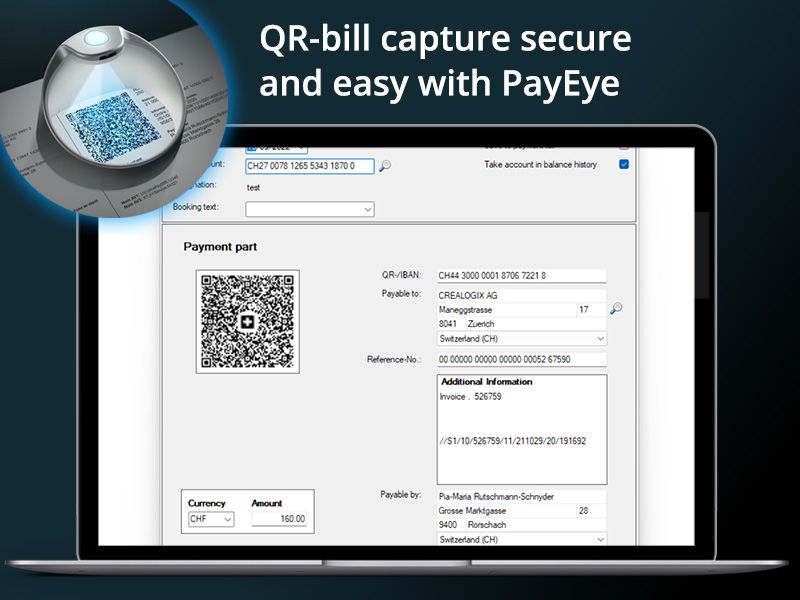

  • Preconfigured for 400 Swiss financial software and e-banking applications
  • Presetting of up to 6 different applications
  • Ongoing and free update of the CLX application for all configurations
  • Close cooperation with all relevant Swiss producers of financial software
  • Wireless operation via Bluetooth or WiFi
  • Scanning up to 1000 Swiss QR Codes per charge
  • Rechargeable battery via USB-C cable or docking station (optional accessory)
  • 2 years full warranty

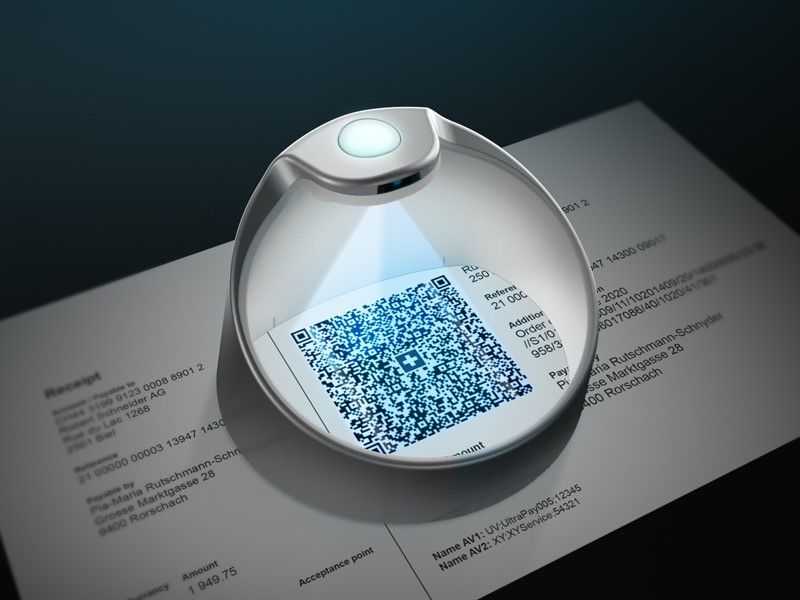

The convenient tool for secure payment transactions

PayEye is ergonomic and intelligent. With its elegant design, the PayEye also cuts a fine figure on your desk. With the practical docking station, PayEye is always ready for wireless operation via Bluetooth or WiFi.



Why not take pictures with your smartphone?

Individual Swiss QR Codes can also be captured and transferred with a smartphone, provided that a corresponding app is available. However, PayEye offers massively more convenience in capturing and more security, since no malware can be installed on the PayEye.

Technical Data

  • Windows 10 onward
  • macOS 10.14 onward
  • Linux, Thin Clients & Zero Clients mit GPP Plug&Play Box
  • Applicable programs: Financial software, e-banking, text editor
  • 1 USB interface (USB-C)
  • Connection via Bluetooth (from V2.1), Wi-Fi (IEEE 802.11b/g) or USB-C
  • Camera with resolution 300 dpi, bit depth 8 to (grayscale)
  • Maximum scan size 42 x 150 mm
  • Scanning of Swiss QR Codes from QR-bills
  • Scanning of Swiss QR Codes direct from file
  • Integrated control of the read-in check digits
  • Exclusive further processing of correct codes
  • Material: Coated plastic
  • Housing colour outside: Silver
  • Housing colour inside: White
  • Dimensions: 85 x 82 x 58 mm
  • Weight: 83 gram
  • EAN 7 640 110 956 007

Shipping items

  • Swiss QR Code Reader PayEye LUKB Edition
  • USB/USB-C cable 1,5m
  • Included: Dockingstation (value of CHF 22.00)
  • Included: USB wall charger (value of CHF 4.00)
